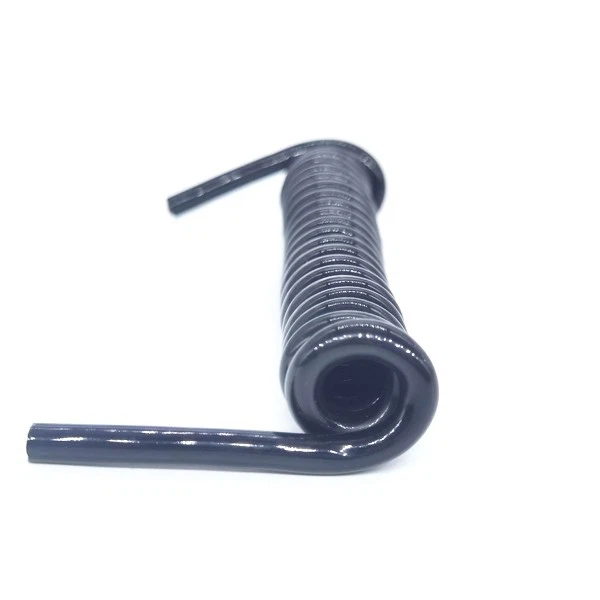

TPU Spiral Cable

When producing spiral cables, our many years experience has developed wealth of expertise in servicing customer needs. Flexibility and durability are key factors for applications requiring long-term high performance. It is also crucial to have the appropriate insulation and the right conductor material. We have specially developed and optimized these spiral cables for applications such as data and current control.

Application: Mobile machines and tools, computers, medical systems, measuring devices, etc.

Cable structure：

- 2 core 22AWG (0.3 mm2)

- Conductor: Stranded oxygen-free copper

- Insulation material: PE

- Insulation colors: blue and red

- Jacket material: TPU

- Jacket color: black

- Cable diameter: 4.5mm

- Coiled cable diameter: 16mm

Features:

PUR outer sheath to withstand high mechanical stress

Extension lengths of up to 4.5x the unextended spiral length

High restoring force

Suitable for indoor and outdoor use, suitable for use in damp environments.

Good oil resistance, chemical resistance, wear resistance, cold resistance, weather resistance

Various cable cross sections from 0.1 to 2.5 mm2

Various cores from 1 to 60 cores

Can custom different functions according to our client's requirements, for example, low temperature, thinner diameter, high tensile strength, etc.
