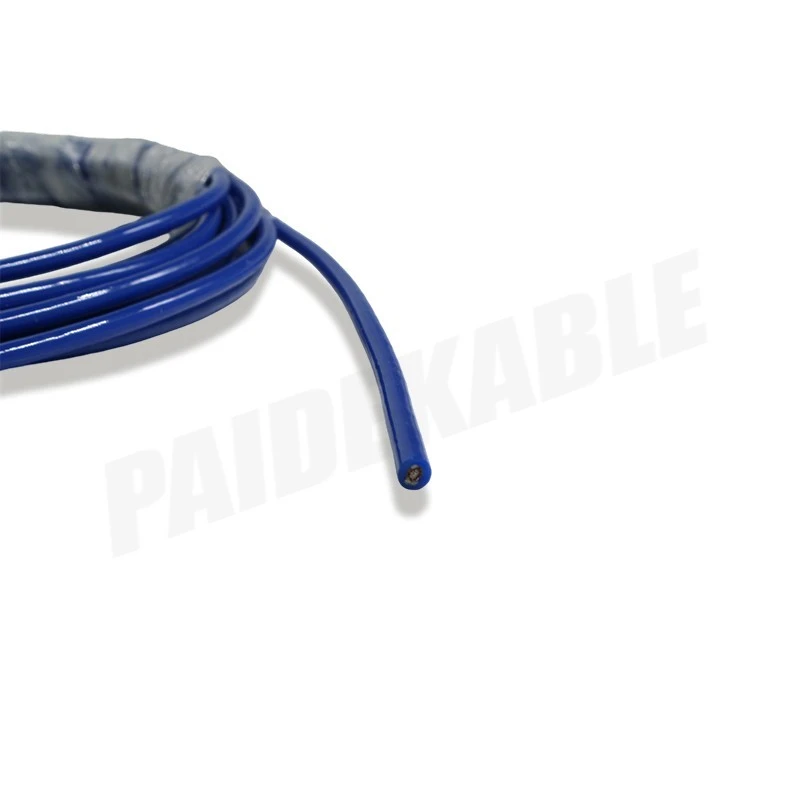

Tethered Drone Cable Coaxial PDK41903-0.6-TPU

PAIDEKABLE provides a durable, lightweight hybrid cable solution for tethered drones. This allows drones to fly higher, see farther, and do more than ever.

This tethered drone cable is designed to be coaxial. It contains 2 conductors: the inner conductor as one conductor and the outer shield as another conductor, which can used for power supply for continuous 3-5A current at 750VDC.
The outer jacket is TPU material, it's durable and effectively prevents the cable from breaking when sliding in the reel.

Model number: PDK41903-0.6-TPU
Cable structure：
- 0.6 mm2 coaxial
Insulation material: High temperature resistant fluoroplastic
Conductor: lightweight silver copper alloy
Shield: lightweight silver copper alloy+ aramid fiber braiding
Jacket: TPU
Jacket color: Blue (we can customize different colors)
Temperature range: -40~+105℃
Outer diameter: 3.3±0.15 mm
Weight: less than 1.3 kg/100 meters
Working current: 3-5 A
Working voltage: 750-1000VDC

Characters: Good environmental adaptability, salt spray resistance, heat/humidity resistance, temperature resistance, low pressure resistance, UV and rain resistance, etc.

If this doesn't meet your requirements, you can contact us and we will provide you with a free new design.
We will provide you with the most cost-effective and quality tethered drone cable.
